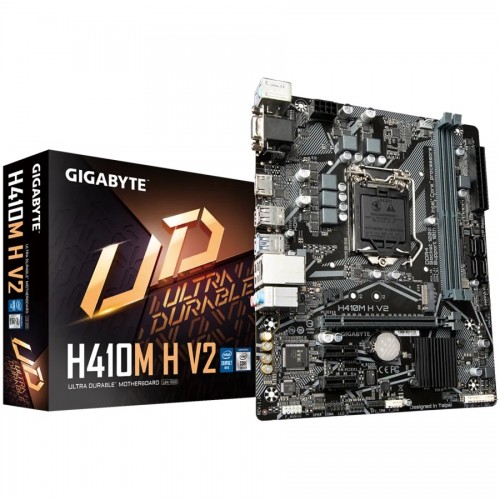

Gigabyte H410M H V2 10th & 11th Gen Micro ATX Motherboard

Basic Information Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package Chipset Intel H410 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor: 22.6cm x 18.5cm Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support) Memory Type DDR4 Slots 2 x DIMM Supported Memory Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 64GB (32 GB single DIMM capacity) Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz Max Shared Memory 512MB Connector & Ports HDMI 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz USB (s) 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) LAN Port (s) Intel GbE LAN chip (1 Gbit/100 Mbit) Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready Audio Realtek Audio CODEC High Definition Audio 2/ 4/ 5.1/ 7.1-channel Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Warranty Information Manufacturing Warranty 03 Years
