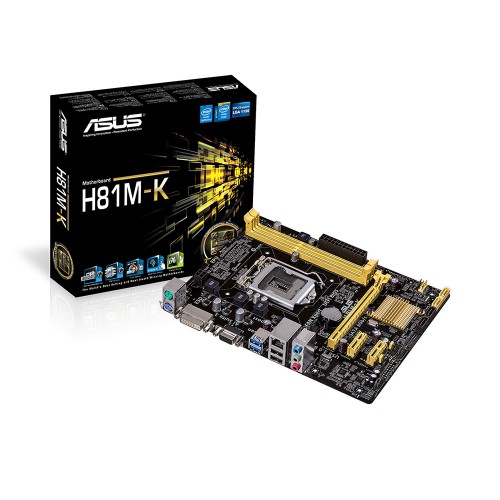

Asus H81M-K Motherboard CPU Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Intel® H81 Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Hyper DIMM support is subject to the physical characteristics of individual CPUs. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. Graphic Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports – Supports DVI with max. resolution 1920 x 1200 @ 60 Hz – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Expansion Slots 1 x PCIe x16 2 x PCIe 2.0 x1 Storage Intel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow 2 x SATA 3Gb/s port(s), dark brown Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 LAN Realtek® 8111G, 1 x Gigabit LAN Controller(s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC *2 – Supports : Jack-detection, Front Panel Jack-retasking USB Ports Intel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) Special Features ASUS EPU : – EPU ASUS Exclusive Features : – GPU Boost – AI Suite 3 – Ai Charger – Anti-Surge – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface – Network iControl – USB 3.0 Boost – Disk Unlocker ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert ASUS EZ DIY : – CrashFree BIOS 3 – ASUS EZ Flash 2 ASUS Q-Design : – Q-Slot Operating System Support Windows® 8 Windows® 7 Back I/O Ports PS/2 keyboard (purple) PS/2 mouse (green) DVI D-Sub LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2x SATA 6Gb/s connector(s) SATA 3Gb/s connector(s) CPU Fan connector(s) (1 x 4 -pin) Chassis Fan connector(s) (1 x 4 -pin) S/PDIF out header(s) 24-pin EATX Power connector(s) 4-pin ATX 12V Power connector(s) Front panel connector(s) Front panel audio connector(s) (AAFP) Internal speaker connector(s) Clear CMOS jumper(s) Accessories User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE Support Disc Drivers ASUS Utilities EZ Update Anti-Virus Software (OEM Version) Form Factor uATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
