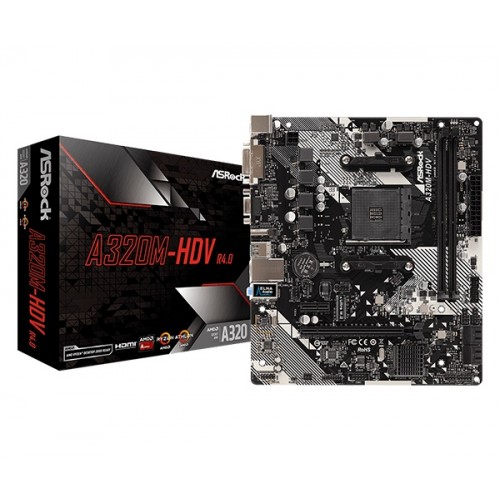

Basic Information Supported CPU – Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) – Digi Power design – 7 Power Phase design – Supports CPU up to 65W Chipset – AMD Promontory A320 BIOS – 128Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – DRAM Voltage multi-adjustment Form Factor – Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm – Solid Capacitor design Expansion Slots PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD 7th A-Series APUs / Raven Ridge CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Ryzen series CPUs (Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Athlon series CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) – 1 x PCI Express 2.0 x1 Slot M.2 Socket – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) – 1 x Screw for M.2 Socket Memory Type – Dual Channel DDR4 Memory Technology Slots – 2 x DDR4 DIMM Slots – 15μ Gold Contact in DIMM Slots Supported Memory – AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200 (OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory – AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200 (OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200 (OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory – AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory Maximum Memory – Max. capacity of system memory: 32GB Graphics Max Shared Memory – Shared memory default 2GB. Max Shared memory supports up to 16GB. – The Max shared memory 16GB requires 32GB system memory installed. Connector & Ports HDMI – 1 x HDMI Port – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz – Supports HDCP 1.4 with DVI-D and HDMI Ports – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) D-Sub (s) – 1 x D-Sub Port – Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz DVI-D (s) – 1 x DVI-D Port – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports HDCP 1.4 with DVI-D and HDMI Ports – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Po USB (s) 6 USB 3.1 Gen1 (2 Front, 4 Rear) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) LAN Port (s) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) Supported Storage – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) – Supports ASRock U.2 Kit – Supports NVMe SSD as boot disks Audio – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection – ELNA Audio Caps Internal I/O Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) TPM (Trusted Platform Module ) 1 x TPM Header Warranty Information Manufacturing Warranty 03 Years warranty
