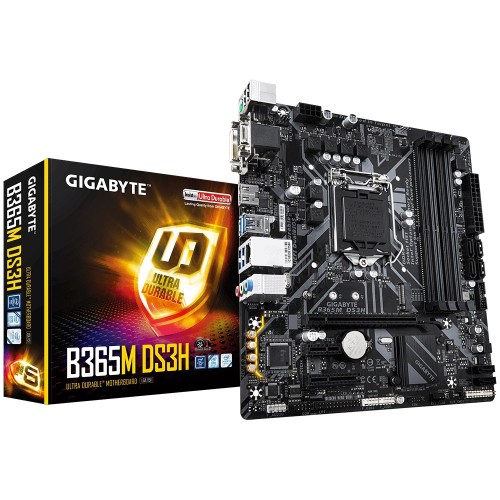

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Basic Information Supported CPU 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors Chipset Intel B365 Express Chipset BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Expansion Slots PCI 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot M.2 Socket 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Memory Type DDR4 Slots 4 Supported Memory 2666/2400/2133 MHz Maximum Memory 64GB Graphics Graphics 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz – The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz – Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Max Shared Memory 1 GB Connector & Ports HDMI Yes ( 1.4 ) D-Sub (s) Yes DVI-D (s) Yes USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit) Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors – Support for RAID 0, RAID 1, RAID 5, and RAID 10 Audio Audio chipset : 2/4/5.1/7.1-channel Audio channel : Realtek ALC887 Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) Warranty Information Manufacturing Warranty 03 Year Warranty
