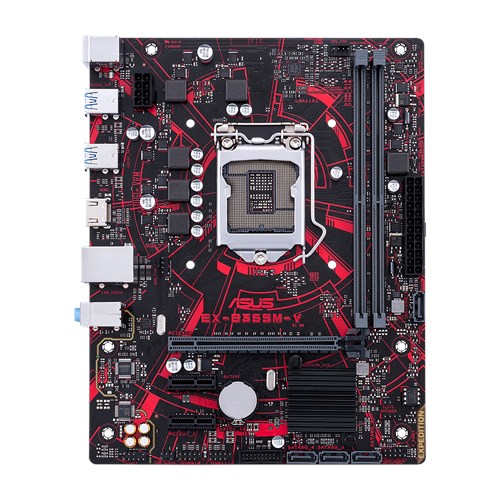

Asus EX-B365M-V DDR4 9th Gen Micro ATX Motherboard

Basic Information Supported CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 Chipset Intel B365 BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS Form Factor mATX Form Factor 8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm ) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC Expansion Slots PCI 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1 M.2 Socket No Memory Supported Memory 2 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Maximum Memory 32GB Graphics Graphics Integrated Graphics Processor- Intel® HD Graphics support VGA output support : HDMI port – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz Connector & Ports HDMI 1 x HDMI USB (s) 4 x USB 3.1 Gen 1 2 x USB 2.0 LAN Port (s) 1 x LAN (RJ45) port(s) Audio 3 x Audio jack(s) Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) Warranty Information Manufacturing Warranty 02 Years
