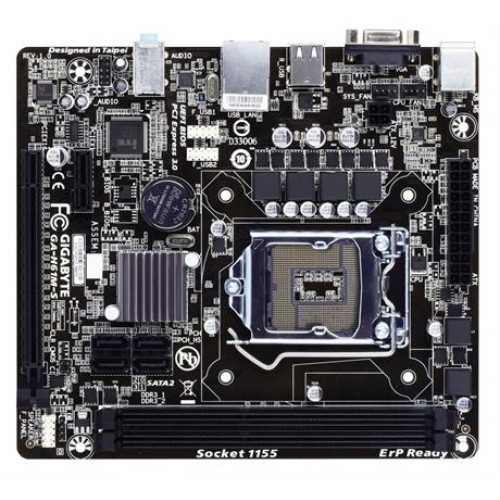

Basic Information Supported CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package Chipset Intel H61 Express Chipset BIOS 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a Form Factor Micro ATX Form Factor; 19.0cm x 17.0cm Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) M.2 Socket No Memory Type Dual channel memory architecture Slots 2 x 1.5V DDR3 DIMM sockets Supported Memory Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 16 GB Graphics Max Shared Memory 1 GB Connector & Ports HDMI No D-Sub (s) 1 x D-Sub port USB (s) 4 x USB 2.0/1.1 headers LAN Port (s) 1 x RJ-45 port Supported Storage 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices Audio 3 x audio jacks (Line In, Line Out, Mic In) Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper Warranty Information Manufacturing Warranty 03 Years
