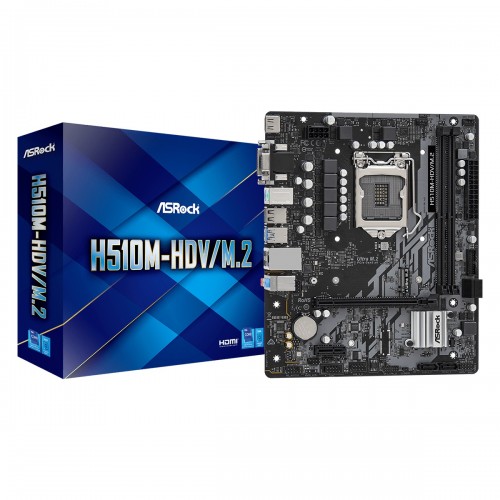

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard

Basic Information Supported CPU – Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) – Digi Power design – 5 Power Phase design – Supports Intel Turbo Boost Max 3.0 Technology Chipset Intel H510 BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment Form Factor – Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm – Solid Capacitor design Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection Expansion Slots PCI 11th Gen Intel Core Processors – 1 x PCI Express 4.0 x16 Slot 10th Gen Intel Core Processors – 1 x PCI Express 3.0 x16 Slot – 1 x PCI Express 3.0 x1 Slots M.2 Socket 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) Memory Type Dual Channel DDR4 Memory Technology Slots 2 x DDR4 DIMM Slots Supported Memory – Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 Maximum Memory 64GB Graphics Graphics – 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics – Three graphics output options: D-Sub, DVI-D and HDMI** – Supports Triple Monitor – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports Connector & Ports HDMI Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz D-Sub (s) Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz DVI-D (s) Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz USB (s) Connector: – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) LAN Port (s) – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE Supported Storage – 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s Audio Connector: – 1 x Front Panel Audio Connector Rear Panel I/O: – HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Ports – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. – 1 x Chassis Fan Connector (4-pin) * The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power. – 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) TPM (Trusted Platform Module ) – 1 x SPI TPM Header Warranty Information Manufacturing Warranty 03 years warranty
