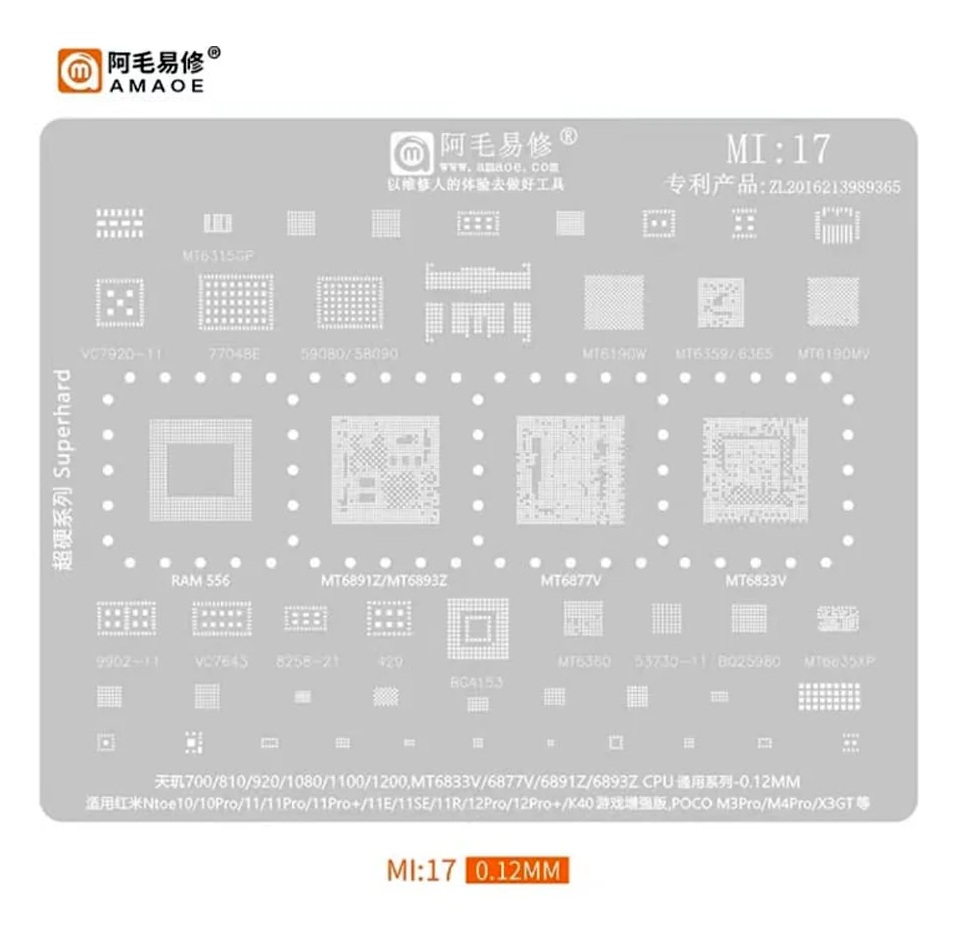

Amaoe Mi-17 Stencil Stencil Purpose: Stencils like the MI-17 are used for precise application of solder paste to solder pads on a PCB. This solder paste serves as a temporary adhesive that holds surface-mount components (SMDs) in place during the soldering process. Reballing: Stencils are also commonly used in reballing processes, which involve removing and then re-soldering a component, such as a BGA (Ball Grid Array) chip. The stencil helps apply solder balls to the component's pads with precision. Compatible Devices: The MI-17 stencil is likely designed for use with specific models. Each stencil is typically designed to match the component layout of a particular device or series. Aperture Design: The stencil features a pattern of tiny apertures (holes) that align with the solder pads on the PCB or component. When solder paste is applied over the stencil and pushed through these apertures, it deposits a controlled amount of solder onto the pads. Stencil Material: Stencils are commonly made from stainless steel or other durable materials to withstand repeated use and exposure to high-temperature soldering processes. SUPPORTED MODEL: MT6315GP VC7920-11 7784E 59080/58090 MT6190W MT6359/MT6365 MT6190MV 556 RAM MT6891Z/MT6893Z MT6877V MT6833V 9902-11 VC7643 8258-21 429 BGA153 MT6360 53730-11 BQ25980 MT6635XP NOTE10/NOTE 10PRO/NOTE 11/NOTE 11PRO NOTE 12PRO/NOTE 12PRO /K40 POCO M3PRO/POCO M4PRO/X3GT
