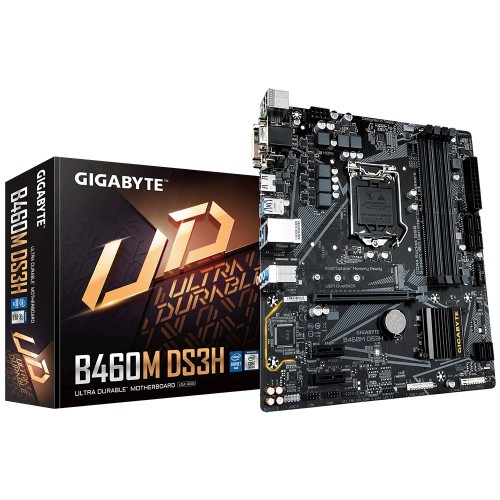

Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard

Basic Information Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package Chipset Intel B460 Express Chipset BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Intel Optane Memory Ready Memory Type Dual-channel architecture Slots 4 x DDR4 DIMM Supported Memory Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 128 GB Graphics Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Max Shared Memory 512MB Connector & Ports HDMI 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz (Support for HDMI 1.4 version and HDCP 2.3.) D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz (The DVI-D port does not support D-Sub connection by adapter.) USB (s) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit) Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready M.2 connectors support up to ASPM L1.2 PCIe power management protocols. Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x serial port headers 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Warranty Information Manufacturing Warranty 03 Years
