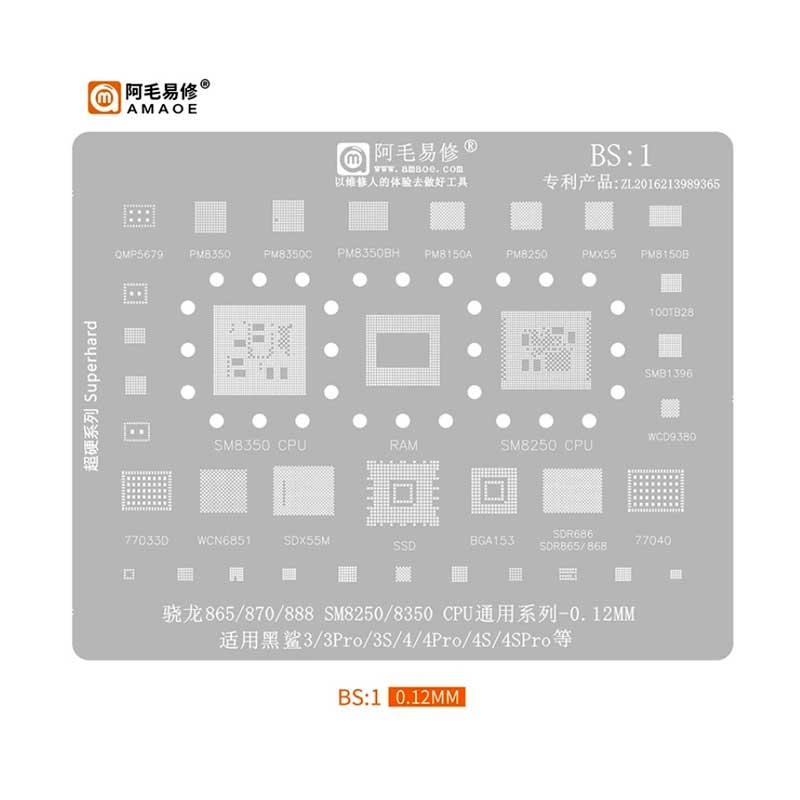

Amaoe BS-1 Stencil Stencil Purpose: Stencils are used to precisely apply solder paste to solder pads on a PCB. This solder paste serves as a temporary adhesive that holds surface-mount components (SMDs) in place during the soldering process. Reballing: Stencils are also commonly used in reballing processes, which involve removing and then re-soldering a component, such as a BGA (Ball Grid Array) chip. The stencil helps apply solder balls to the component's pads with precision. Compatible Devices: The stencil is likely designed for use with specific models. Each stencil is typically designed to match the component layout of a particular device or series. Aperture Design: The stencil features a pattern of tiny apertures (holes) that align with the solder pads on the PCB or component. When solder paste is applied over the stencil and pushed through these apertures, it deposits a controlled amount of solder onto the pads. Stencil Material: Stencils are commonly made from stainless steel or other durable materials to withstand repeated use and exposure to high-temperature soldering processes. Supported Model: QMP5679 pm8350 PM8350C PM8350BH PM8150A PM8250 PMX55 PM8150B SM8350 CPU SM8250 CPU 100TB28 SMB1396 WCD9380 77033D WCN6851 SDX55M BGA153 SDR686/SDR865/SDR868 77040
