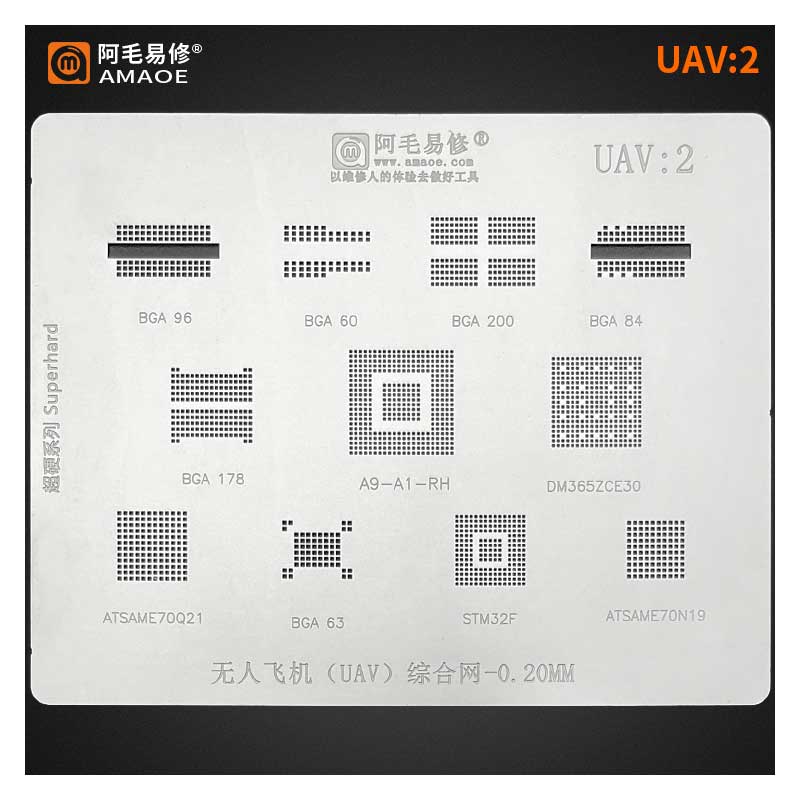

AMAOE UAV-2 STENCIL For Drone BGA Reballing Stencil Purpose: The stencil is used in the BGA reballing process, which involves removing a damaged or faulty BGA component from a PCB and replacing it with a new one. The stencil helps create an accurate and uniform pattern of solder balls or bumps on the BGA component, ensuring proper electrical connections. Drone and UAV Electronics: Drones and UAVs often use advanced electronics, including BGA components, in their flight control systems, cameras, sensors, and other parts. When these components fail or need replacement, BGA reballing may be necessary. BGA Components: BGA components have a grid of solder balls on their underside, which make contact with corresponding pads on the PCB. Reballing involves removing the old solder balls, cleaning the component and PCB, and then applying new solder balls using a stencil. Stencil Design: The AMAOE UAV-2 STENCIL is likely designed with specific BGA component patterns used in drone or UAV electronics in mind. It ensures that the solder balls are placed accurately and uniformly, which is essential for reliable connections. Reballing Process: The BGA reballing process typically involves applying solder paste through the stencil onto the BGA component, heating the assembly to reflow the solder, and then allowing it to cool and solidify. This process forms the solder balls. SUPPORTED MODEL:- BGA96 BGA60 BGA200 BGA84 BGA178 A9-A1-RH DM365ZCE30 ATSAME70Q21 BGA63 STM32F ATSAME70N19
