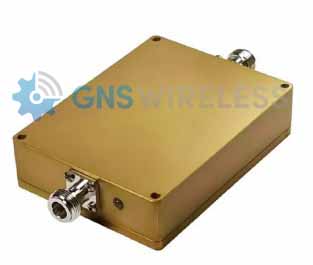

Description 5.0 to 6 GHz Bi-Directional Amplifier, 15 Watt Indoor/Outdoor This is a wide band, multi-frequency bi-directional amplifier that works from 5GHz to 6 GHz frequency. The amplifier offers a high speed switch to allow for high datarate radios to function. Peak transmit power of the amplifier is 42dBm. This amplifier is packaged in an outdoor watertight housing with power over coax. Indoor DC injector is included. N-Female connectors. Electrical: Operating Range 5000 – 6000 MHz Operating Mode TDD, Time Division duplex, Transmit PeakPower 43dBm /- 1 Transmit Gain 17 dB /- 2 Transmit input Power 3dBm min 20 dBm max Receive Gain 20~22 dB Noise Figure 3.5 dB LED indicators Red for Receive (Default mode) Green for Transmit Power Consumption 100mA Rx, 3.1A Tx @ 28 VDC Operating Temp -40 °C to 70 °C Mechanical: Outdoor CNC machined Al enclosure: 4.5 x3.5 inch, 1.1” high Weight 14 Oz
