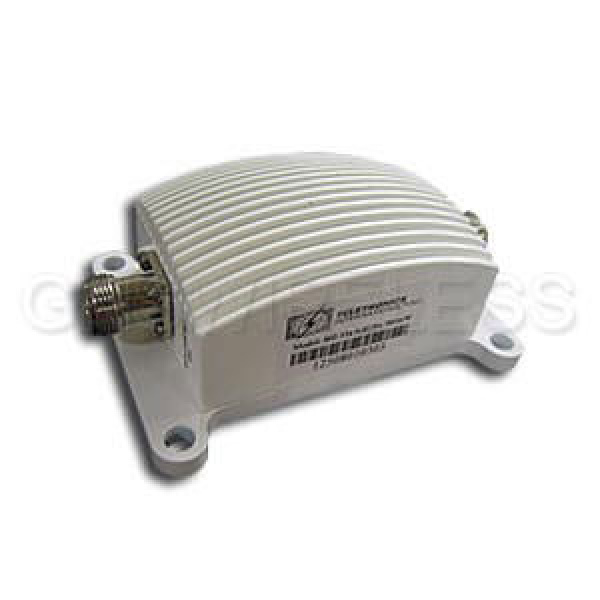

Description 802.11A, 5 GHz, 5725-5875 Inline Amplifier, 1000mW This 802.11a 1Watt amplifier is ideal for increasing the range of 802.11a radio devices and to compensate for cable loss in certain installations. RF Amplifier 5.8GHz Series, 1Watt Outdoor Version Designed for extending the range of wireless radio devices requiring high linearity amplfiication and is particularly effective when used with 802.11a Orthogonal Frequency Division Multiplexing (OFDM) radio devices. This unit provides the transmit power amplification as well as receive signal gain. Technical Specifications Features: 1 Watt Indoor Amplifier for 5.8 GHz Operating Range: 5725-5875 MHz Operating Mode: Bi-directional, TDD Transmit Gain: 17dB Frequency Response: ± 1 dB Output Power: 1W ( 30dBm) @ 13dBm input TX Input Power: 1mW (0dBm) min, 20 mW (13dBm) max Receiver Gain: 12 dB typical Noise Figure: 3.5 dB typical LED Inidicators: RED GREEN/ORANGE Solid On: Power and Receiving mode Off: No Power Blinking: Transmitting Connectors: N-type Female Lightning Protection: Direct DC ground at antenna DC Surge Protection: 600 Watts TVS @ 12 VDC Power Consumption: 1.5A @ 12 VDC Operating Temperature: -40 °C to 70 °C
