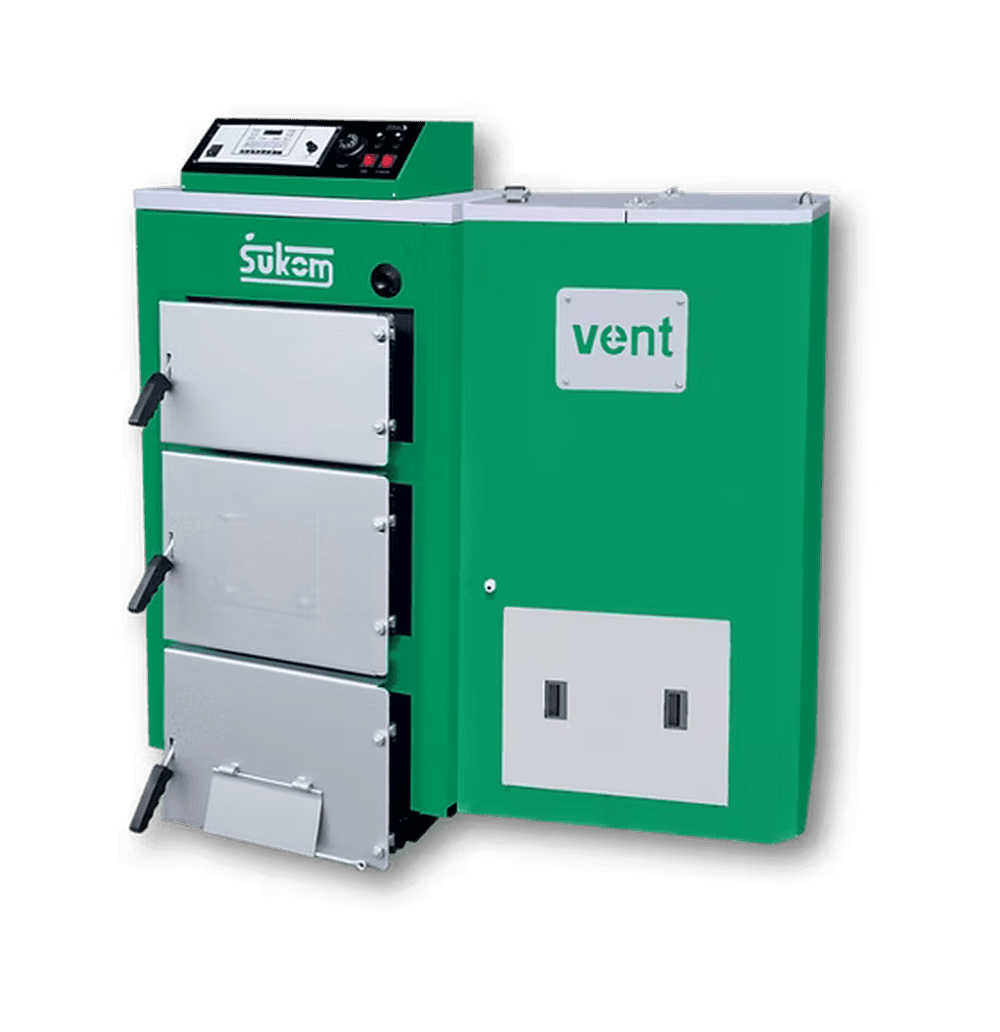

Description The construction of the boiler is well thought out. Wood is loaded into the boiler through the middle door. In the upper part of the boiler, there are smoke passages with flame tubes, which gives the boiler high efficiency and at the same time ensures easy cleaning. The rear section of the bottom of the boiler is designed for burning pellets. Pellets are fed into the combustion bowl of the boiler using a transport screw at the bottom of the container. The primary air fan ensures the amount of air required for the pellet combustion process. The boiler is equipped with a flue gas fan. The boiler is insulated with mineral wool and covered with heat-resistant powder paint. The maximum pressure of the boiler is 2,5 bar and the maximum operating temperature is 90C. There are reflectors at the back of the boiler to increase combustion efficiency. By adding turbulators to the boiler's flame pipes, it is possible to increase the efficiency of the boiler by 7-10%. It is mandatory to use a safety valve with a pressure of 2,5 bar when connecting the boiler. BOILER MODEL Šukoplam VENT 25 Šukoplam VENT 30 Šukoplam VENT 50 Šukoplam VENT 80 Nominal power kW 24-32 30-43 40-60 65-90 Min. power 24 30 40 65 A1 (mm) 400 470 500 530 B1 (mm) 550 705 830 865 A (mm) 1355 1440 1470 1485 B (mm) 1177 1295 1415 1525 C (mm) 1340 1360 1360 1450 E(mm) 1006 1097 1097 1175 F/F1 (mm) 170 170 170 165 G (mm) 840 915 915 995 Water volume (l) 160 180 240 280 Weight (kg) 460 520 600 700 Flue gas temp. (C) 230 230 230 230 Working pressure (bar) 2,5 2,5 2,5 2,5 Smoke pipe diameter (mm) 160 160 180 200 Hot/cold connection '' 1 ¼ vk 1 ¼ vk 1 ¼ vk 1 ½ vk Safety valve connection '' 1 vk 1 vk 1 vk 1 vk Filling/draining connection '' ½ sc ½ sc ½ sc ½ sc Pellet container (kg) 165 165 165 165
